Float switch with contactor. The 9036DW31 is a general purpose pedestal mounted Float Switch with cast aluminum enclosure The level sensor offers DPST2NC DB contacts, variable adjustable float movement, power electrical circuit, contacts close on liquid rise operation and without local signaling It is suitable for open tank or sump. Correct wiring of float switch into two pole contactor for well pump Ask Question Asked 5 years, 4 months ago Active 5 years, 4 months ago Viewed 15k times 0 I have a Mars 780 two pole 30A contactor I am using this contactor to control a 2V well pump that fills a cistern I then have a float switch in the cistern which, when closed. Float switches are also available with multiple switch points The switching functions always refer to a rising liquid level Normally open, normally closed or changeover contact Through the use of a float for a max of 2 switch points a bistable switch behaviour can be achieved, meaning that the switching status also remains available, when.

The MTS series by Galvatek is a magnetic float level switch which comprises of 1, 2, or 3 contacts For model having a 1 contact, it has an integrated temperature sensor For model having a 1 contact, it has an integrated temperature sensor. The only way to make a DPDT CrossWired Alternating Relay work with a HIGH & LOW float switch is to utilize one auxiliary contact on each contactor and use the following connection diagram As the water rises, the LOW float switch is closed As the water rises, it closes the HIGH float switch, turning on Pump #1. Using a simple float switch and relay can solve this problem and save time, money, and aggravation Whether you need to maintain a critical level in your tank or just want to.

The schematic for the contactor as shown here has three normally open contacts for the 3phase power to the motor, a fourth contact that is normally open (marked NO) and a fifth contact that is normally closed (NC) (portion deleted) The float switches mentioned have three wires each so they also probably have contacts you can call NO and NC. The contacts installed in the float switch are screwed to a contact strip within the sliding tube They are set to the switching points according to the preceding table and can be adjusted to higher or lower values retroactively (observe minimum distances!) For adjusting the contacts, proceed as follows. Working of contactor A simple circuit diagram Either of the Two Start Buttons will close the contactor , Either of the STOP buttons will open the Contactor Note That one one of the Contactor acts as a switch for the START Button.

Note The contacts in the KL and KH are high performance miniature switches Because the floats will be immersed in liquid, it is not recommended to switch pump motor currents directly through the KL or KH Rather use a heavyduty relay or contactor respectively between the 2L, 2H contacts and the pump. The switch turns off when the water is drained out of the sump basin and the pump stops These sump pump float switches and diaphragm switches connect directly to the pump, or the pump's power cord is plugged into the switch to control electric power to the pump View More. If you purchase a float switch with a piggyback plug the installation is very simple The plug on the float switch will plugin to a power outlet, and then the pump will plug into the piggyback outlet on the back of the float That is all there to it, your pump will only come on when the float is in position to allow it.

Float Switches Design and Function BERNSTEIN float switches are designed as contactless magnetic switches They are used to control level in containers / tanks with nonflowing and / or flowing liquids such as water, oils, caustic solutions etc Float switches consist of a connection head, an immersion tube with one to four. Huge Float Switches Inventory Same Day Shipping Expert Technical Support Shop By Phone All Products SendIn Repair OnSite Repair Contacts SPDT Switching Current 06 Amps Switching Power (VA) 25 VoltAmps Switching Voltage AC 240 Volts AC Switching Voltage DC 1 Volts DC. I had to do this a few times with floodlights to be used outside Break your circuit, L N E through your contactor Link a permanent live and a neutral from your supply to your coil (Al ) then use your switch feed to your photocell from A1, and switch the wire to the switched phase of your contactor load.

Automatic Tank Level Pump Control Using Float Switches Are you tired of cleaning up spills from your water tank, oil tank, or other liquid storage tanks?. The switch turns off when the water is drained out of the sump basin and the pump stops These sump pump float switches and diaphragm switches connect directly to the pump, or the pump's power cord is plugged into the switch to control electric power to the pump View More. Float Switches Our Bulletin 840 Float Switches are heavyduty industrial control devices They open and close contacts in response to changes in liquid level These switches are available in five different styles with both motor and pilot duty contact ratings.

A float switch is comprised of a permanent magnet to ensure it moves along with the liquid level on a guide tube and provides accurate level readings The guide tube is fitted with a reed contact (inert gas contact) and is energized by the approach of the float magnet By using a magnet and reed contact, the operation of the float switch is noncontact, free from wear and needs no power supply. A polypropylene float makes these switches buoyant even in viscous liquids Relays for Float Switches Install one of these relays to actuate equipment that has a higher current rating than your switch. MDI Inc PO Box 710 US 12 East Edwardsburg, Michigan Information Contact Us Disposal & FAQs Our Company Store Policies.

Packard DP3012 C230B 2 Pole 30 Amp Contactor, 1 Voltage Coil 'Float Switch, Narrow Angle, Mechanical, Wire Leads Connection, Max Amps Running 5, Voltage 125 to 250VAC, Wire Gauge 18, Length 427/32 In, Height 427/32 In, Min Water Level Adjustment 11/2, Max Water Level Adjustment 11/2, Operation NC, Float Material. Square D 9037 ClosedTank Float Switch with Bushing for Power Circuit, Side Mount, NEMA 1, Left Float Position, 90Deg Float Rod Angle with 3" Offset, Contacts Close on Rise 50 out of 5 stars 1 $ $ 123 23. The schematic for the contactor as shown here has three normally open contacts for the 3phase power to the motor, a fourth contact that is normally open (marked NO) and a fifth contact that is normally closed (NC) (portion deleted) The float switches mentioned have three wires each so they also probably have contacts you can call NO and NC.

Level Switches / Float;. Manufacturer of Mercury Relays & Contactors, Customizable Float Switches, Grinder Pumps and Solid State Relays. Commercial Pressure and Float Switches for Power Circuits Selection Guide—Float Switches 6 03/11 Selection Guide—Float Switches Class 9036 Type D—Open Tank, General Purpose Type of Installation Horsepower rated Product Features 2pole switch, lever operated Standard action—contacts close on liquid rise.

How New Float Switches Work Float switches of the 21st century have come much further in the amount of operations your float switch can perform For example, Water Level Controls is a float switch manufacturer that is revolutionizing the way float switches are used for water level sensing Water Level Control’s NEW Float switches work by using probes (instead of floats) to detect or (sense. Float switch control of a pump and pilot lights In circuit #3, a float switch is used to operate a pump motor The pump is used to fill a tank with water When the tank is low on water, the float switch activates the pump motor and turns a red pilot light on When the. Float Switches DESIGNED FOR PERFORMANCE AND DEPENDABILITY INDUSTRY LEADING FLOAT SWITCHES Pump Switches DESIGNED FOR PERFORMANCE AND DEPENDABILITY Learn More Control Switches DESIGNED FOR PERFORMANCE AND DEPENDABILITY Learn More Looking for support or purchase information?.

The float is attached to a supported, swivelling lever and moves with the level of the medium being measured By means of a permanent magnet, fixed to the end of the lever, when a preset switch point is reached, a reed contact (inert gas contact) within the contact tube is actuated. The Q Series Float Switch consists of a heavy duty polypropylene float double molded onto a high quality three core cable The float contains a single pole double throw switch, which can be used to give adjustable control over the level of liquid in tanks, pits and dams By careful tethering of the cable the switch can be set to give an. Square D float switches detect the level of a liquid in a tank They are suitable for starting and stopping pumps, opening and closing valves, and activating level alarms.

Float Switch, Flow Switch, Reed Relay and Pressure Sensor manufacturers with a global distribution network Level Sensors Cynergy3 offers an extremely wide range of float switches and level sensors View Level Sensors Signal Conditioning. A float switch is comprised of a permanent magnet to ensure it moves along with the liquid level on a guide tube and provides accurate level readings The guide tube is fitted with a reed contact (inert gas contact) and is energized by the approach of the float magnet. Typically, the way in which a float switch operates uses a magnetic reed switch, breaking or connecting an electrical circuit when liquids reach a designated level While these switches are commonly used for tank level applications, they can fail and cause unreliability issues.

A float switch prevents flooding An air conditioner includes a normally closed float switch, which turns off the system if the condensate drain clogs and water overfills the drip pan A bilge or sump pump has a normally open float switch, which turns on the pump when the water level rises above a set point. The 9036DW31 is a general purpose pedestal mounted Float Switch with cast aluminum enclosure The level sensor offers DPST2NC DB contacts, variable adjustable float movement, power electrical circuit, contacts close on liquid rise operation and without local signaling It is suitable for open tank or sump. In circuit #3, a float switch is used to operate a pump motor The pump is used to fill a tank with water When the tank is low on water, the float switch activates the pump motor and turns a red pilot light on.

The contacts installed in the float switch are screwed to a contact strip within the sliding tube They are set to the switching points according to the preceding table and can be adjusted to higher or lower values retroactively (observe minimum distances!) For adjusting the contacts, proceed as follows. The float with integrated magnet adapts to the liquid level and activates the reed contact enclosed in the immer sion tube on reaching a defined level Featuring contactless operation and a service life of Depending on pressure, temperature and aggressivity of the medium to be monitored, the right float can be chosen for specific applications. Float Float level switches are sensors with an electrical contact output at a specific liquid level Applications include level control, valve control, deaerators, condensate tanks, oil level control, drip legs, and boilers.

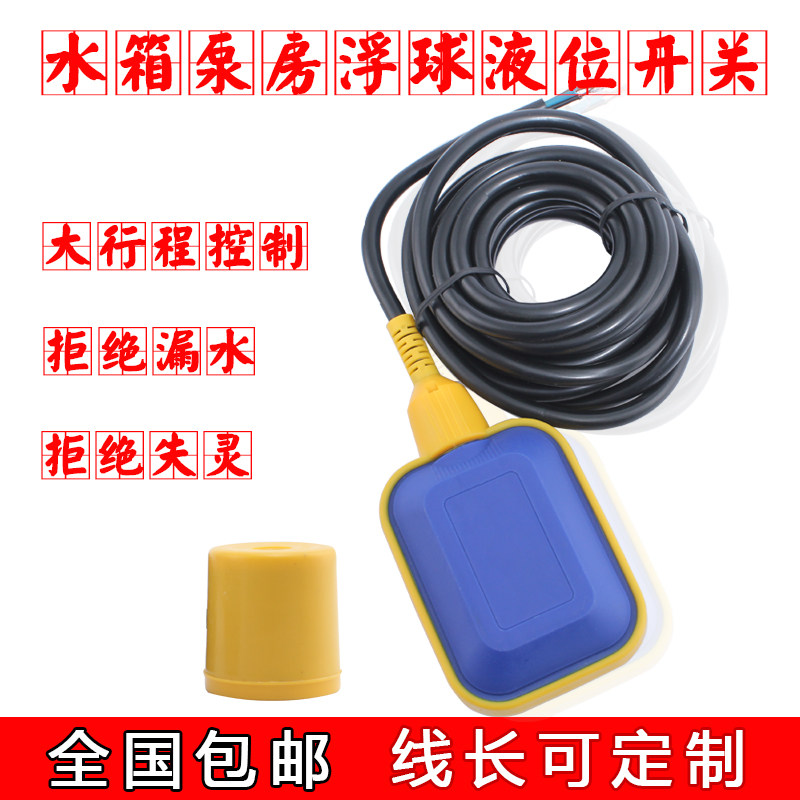

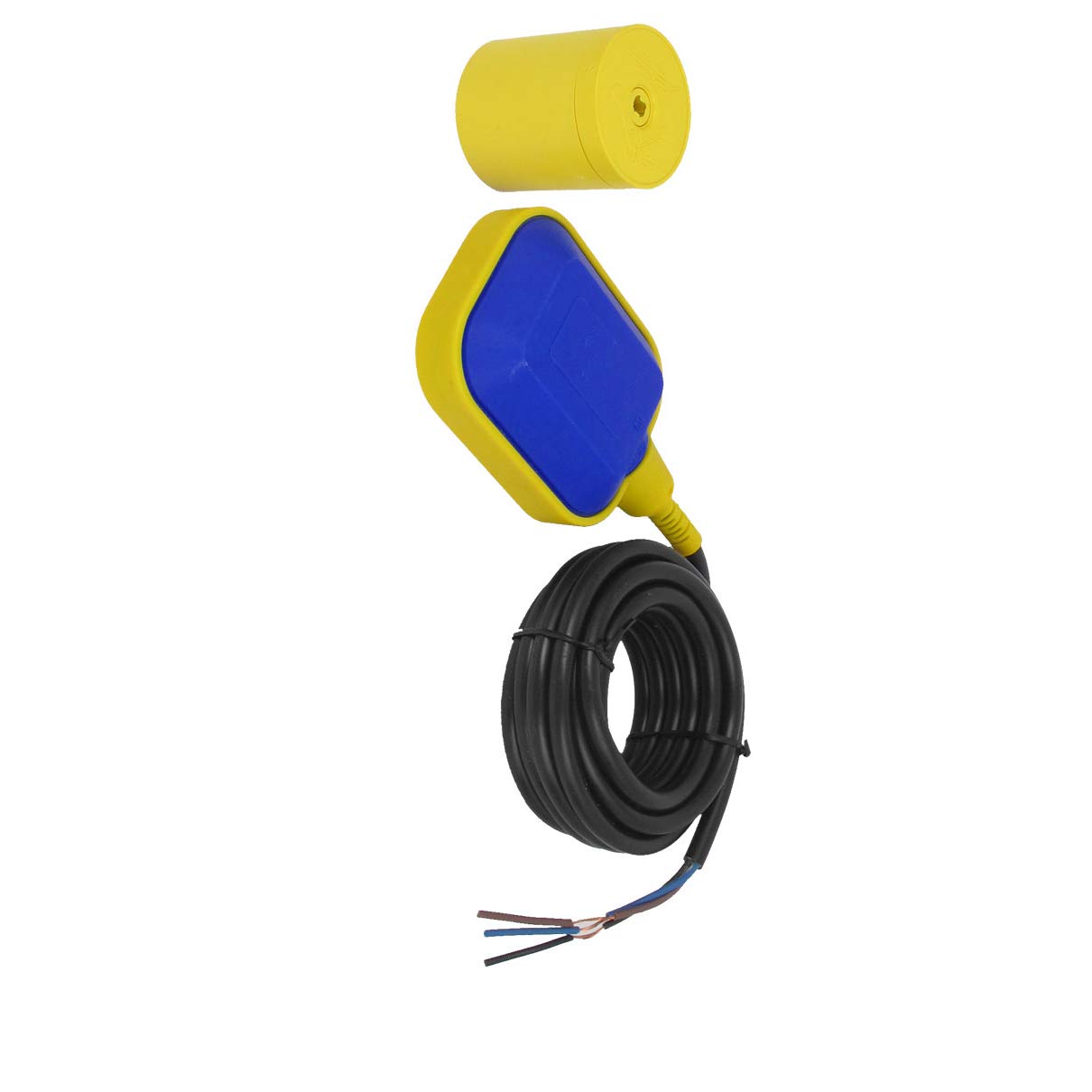

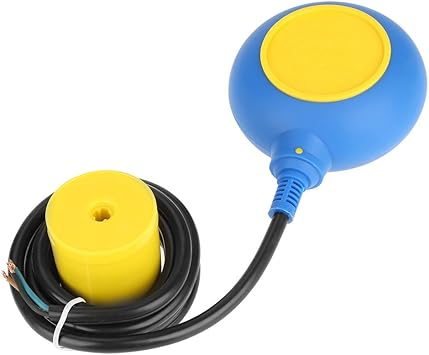

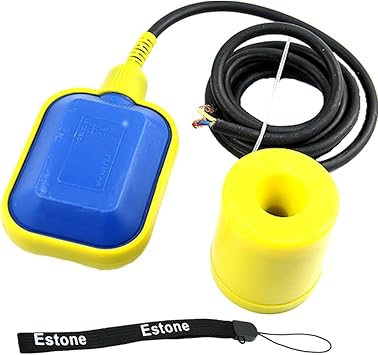

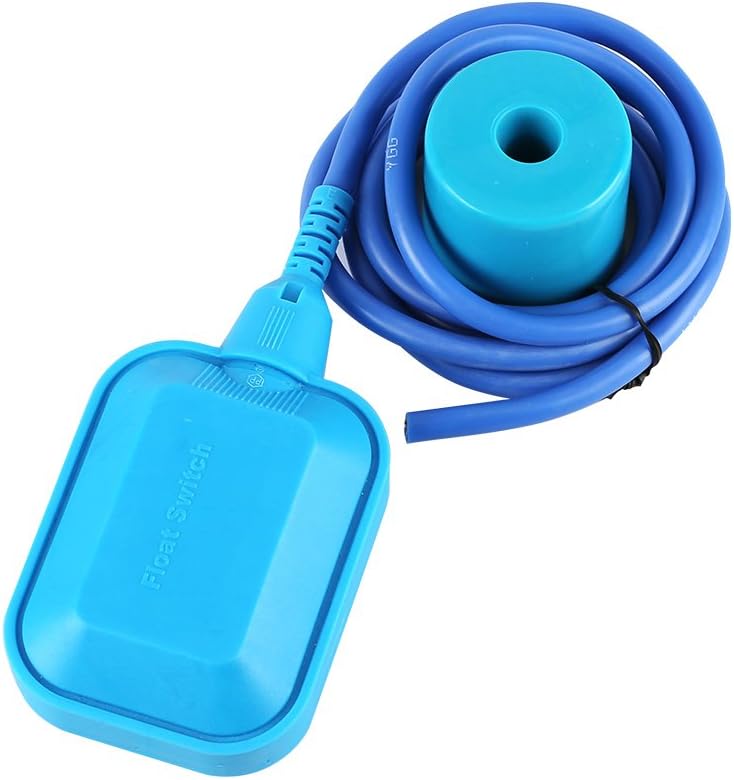

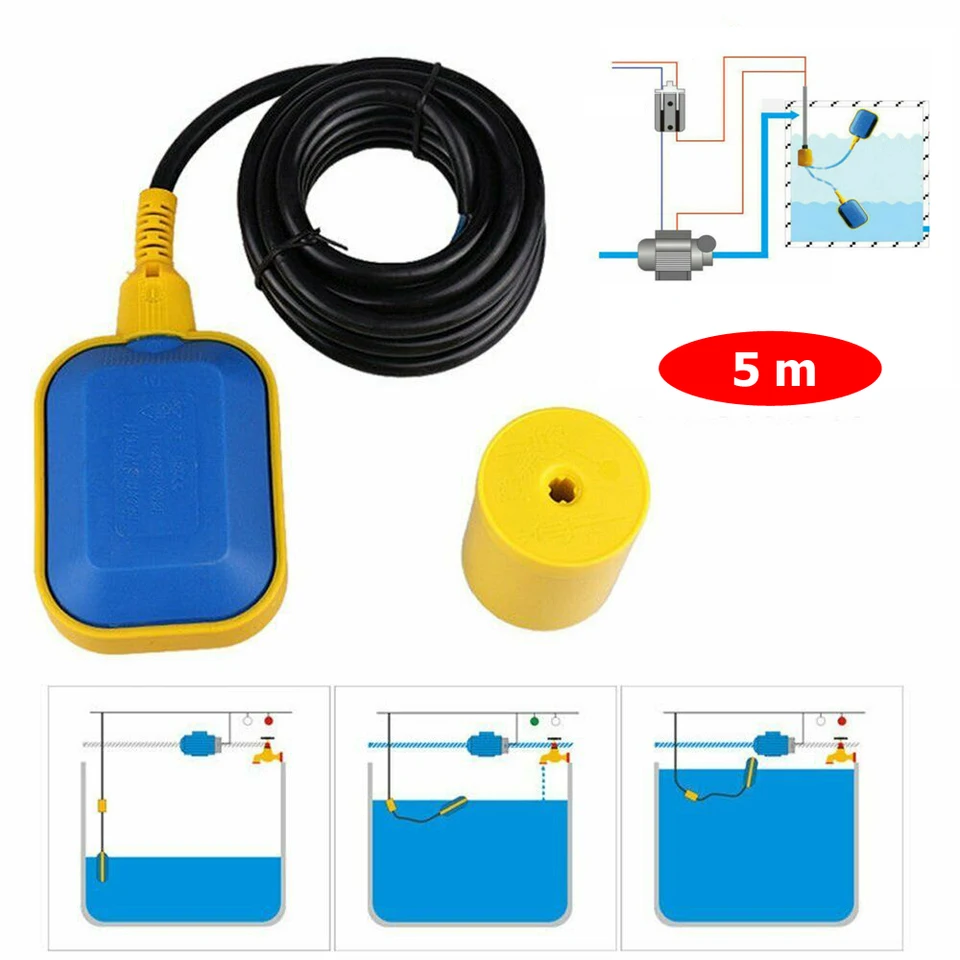

Float Switches and Accessories, 5HP, Contacts Close on Liquid Rise, Noryl Thermoplastic Resin, Pedestal Mounted, Vertical Mfr # 9036GG2H View Product Compare Compare Square D (Schneider Electric) Float Switch Kit Mfr # 9049A6CS View Product Compare Compare Square D (Schneider Electric). Float switches are also available with multiple switch points The switching functions always refer to a rising liquid level Normally open, normally closed or changeover contact Through the use of a float for a max of 2 switch points a bistable switch behaviour can be achieved, meaning that the switching status also remains available, when. Float Switch Liquid Fluid Water Level Controller Contactor Sensor 2V 75" Cable Features This product is applicable to control pump work, adjust liquid level, and can also be installed on submersible pump to control motor Made of high quality polypropylene which guarantees a long service life.

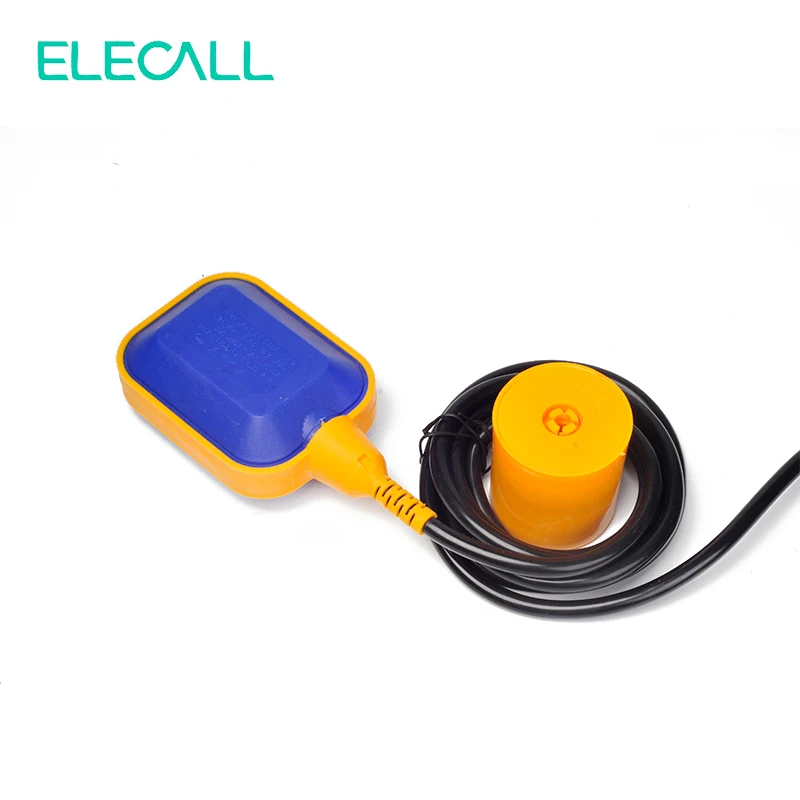

Square D float switches detect the level of a liquid in a tank They are suitable for starting and stopping pumps, opening and closing valves, and activating level alarms. A float switch's wires connect in series with the appliance's control circuit Power flows to the appliance when the float switch closes, and the appliance turns off when the float switch opens Step 1 Turn off the power to the appliance the float switch protects. Item 2 1X Float Switch Liquid Water Level Controller Contactor Sensor Durable 2 1X Float Switch Liquid Water Level Controller Contactor Sensor Durable $2626 Last one Free shipping No ratings or reviews yet No ratings or reviews yet Be the first to write a review You may also like.

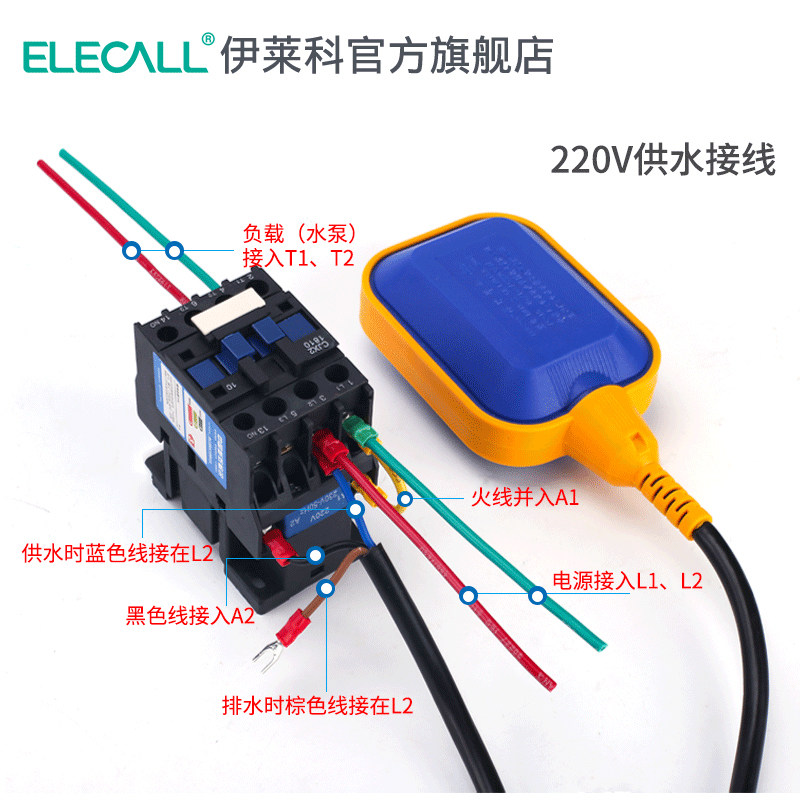

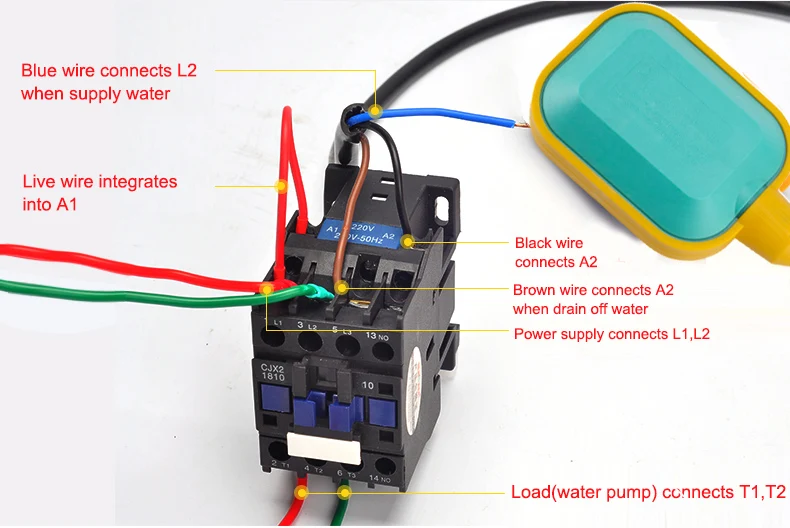

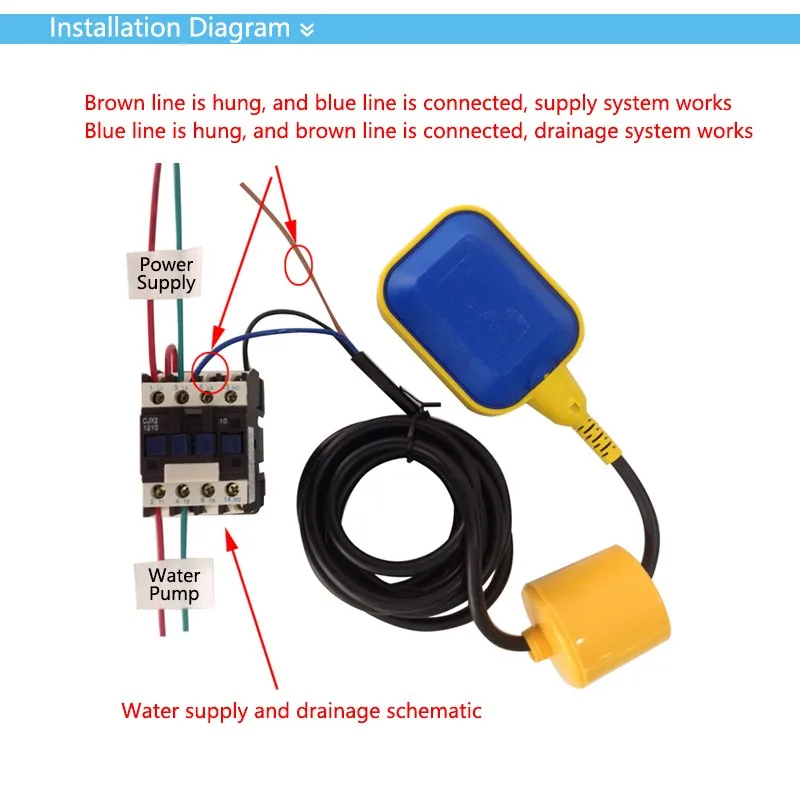

One wire to each side of contacts on contactor then 1 wire from each other side to pump Also one side of feed wires to one side of contactor with second side to float switch, finally the last wire of float switch to neutral No need for an inline fuse. Each Kobold SV float type flow meter and flow switch has a direct reading scale and may be factory fitted with single or dual magnetic reed contacts that actuate when the desired flow is achieved The principle of operation of the Kobold SV float type flow meters and flow switches has advantages in that the float is stabilized over its entire. Float Switches DESIGNED FOR PERFORMANCE AND DEPENDABILITY INDUSTRY LEADING FLOAT SWITCHES Pump Switches DESIGNED FOR PERFORMANCE AND DEPENDABILITY Learn More Control Switches DESIGNED FOR PERFORMANCE AND DEPENDABILITY Learn More Looking for support or purchase information?.

A float with a builtin magnetic system moves with the level of the medium to be measured on a guide tube which has one or more reed switch contacts built into it The magnet actuates the contacts at the preset switching heights and thus allows individual levels t. Your float switches have a Common, Normally Open and Normally Closed The Lower Switch uses the N/C contact so it will be closed unless the water level drops below it When the water level reaches the Upper Switch which is N/O it will close and K1 the motor contactor will pull in, the K1 Aux N/O contacts will latch K1. This wideangle normally closed contact float switch is a replacement for aerator and stock tank pumps It cannot be used for sump pump or other water removal applications It turns pumps off when raised, as opposed to sump pump float switches that turn pumps on when raised.

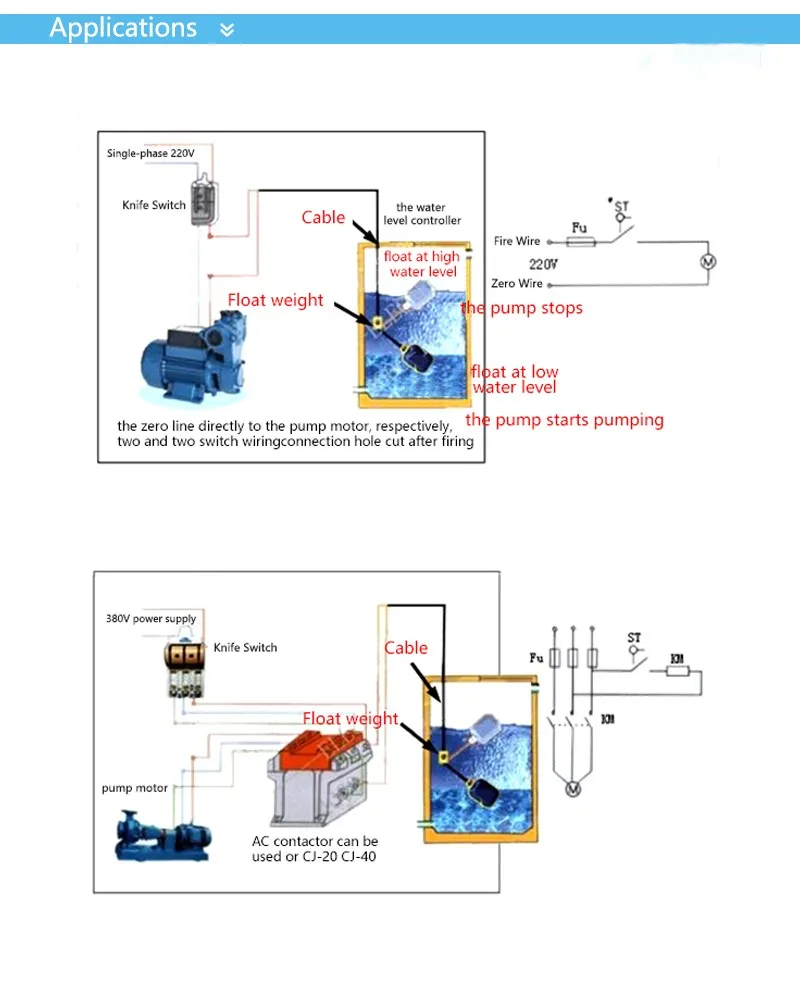

The float switch connected in series with the contactor coil will fill on low (close contactor) and stop (open contactor) on full without using anything but the float switch and the contactor coil. A twowire float switch that can easily be used for turning a pump on or off Mount or suspend your switch at the desired level, get your wires into a watertight junction box (or out of the liquid containment area and then into a junction box), check the connections back to your control and power equipment, and you’re done. When this happens, the magnet inside the float reaches at a close proximity to the reed switch, closing its contacts and thereby causing the wire terminals to get shorted across these contacts The right hand side of the diagram is a transistorized latch circuit When the tank is empty and is required to be filed, the push button is pressed.

Note The contacts in the KL and KH are high performance miniature switches Because the floats will be immersed in liquid, it is not recommended to switch pump motor currents directly through the KL or KH Rather use a heavyduty relay or contactor respectively between the 2L, 2H contacts and the pump. One wire to each side of contacts on contactor then 1 wire from each other side to pump Also one side of feed wires to one side of contactor with second side to float switch, finally the last wire of float switch to neutral No need for an inline fuse. DualMagnet Float Switch Model NGS The MTS series by Galvatek is a magnetic float level switch which comprises of 1, 2, or 3 contacts For model having a 1 contact, it has an integrated temperature sensor This is the Compare this product Remove from comparison tool.

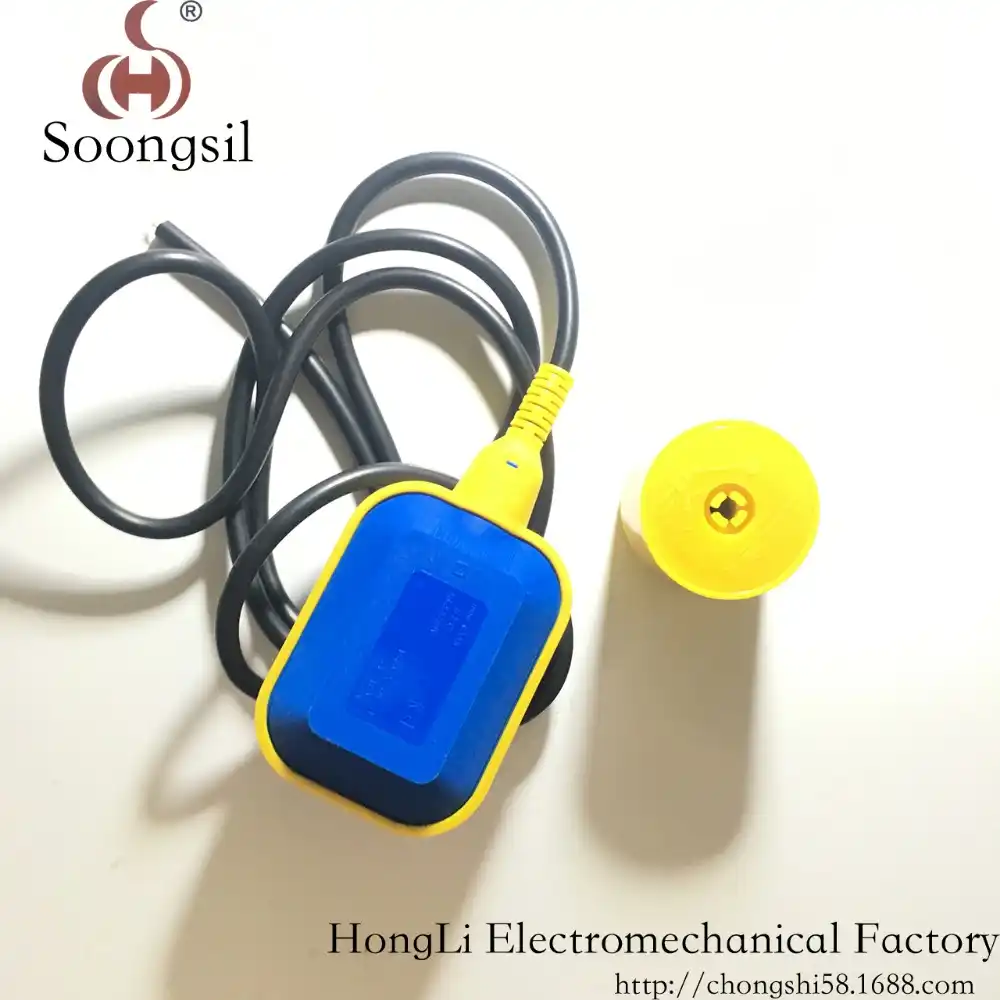

When this happens, the magnet inside the float reaches at a close proximity to the reed switch, closing its contacts and thereby causing the wire terminals to get shorted across these contacts The right hand side of the diagram is a transistorized latch circuit When the tank is empty and is required to be filed, the push button is pressed. A float switch is a type of level sensor, a device used to detect the level of liquid within a tank The switch may be used to control a pump, as an indicator, an alarm, or to control other devices One type of float switch uses a mercury switch inside a hinged float Another common type is a float that raises a rod to actuate a microswitchOne pattern uses a reed switch mounted in a tube;. Float Switch Liquid Fluid Water Level Controller Contactor Sensor 2V 75" Cable Features This product is applicable to control pump work, adjust liquid level, and can also be installed on submersible pump to control motor Made of high quality polypropylene which guarantees a long service life.
