Doctor blade angle gauge. The doctor blade is at an acute angle from its tangential line of contact and it scrapes the ink off the roller’s surface To make it simpler it looks more familiar in a press setting As we look at the slide this will leave a lubricating ink film on the roller, extending blade life. Here you have a short tutorial with useful hints. Kadant Solutions, a division of Kadant Inc, launched its new AngleSet angle gauge tool for doctor blade and scraper installations The new AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance and longer blade life In addition, using the correct blade angle can extend the life of the roll.

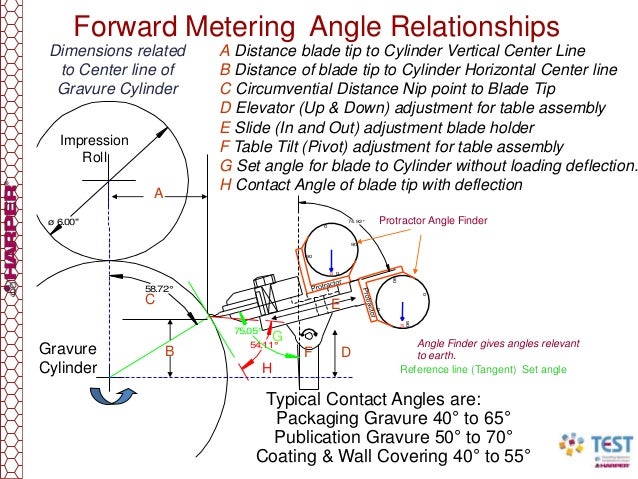

A generally acceptable flexo doctor blade contact angle range is 25 to 42 degrees, depending on the system A doctor blade contact angle of 30 degrees is a nominal good angle use a plastic feeler gauge to set the blade pressure Gradually increase the air pressure until the feeler gauge fits snugly between the blade tip and anilox Use the. The angle gauge is produced in a size that the operator can keep it in their pocket and is handy to use when changing doctor blades The PrimeBlade Angle Gauge comes in two sizes One from circumference 300mm to 785mm and the other from circumference 785mm to > 6280mm It is delivered in a plastic pouch for protection. The AngleSet gauge is used to set the proper angle for doctor, roll cleaning, and scraper blades for improved performance and extended blade life Using the correct blade angle can optimize the life of the roll The AngleSet gauge provides an accurate reading of the blade angle to / 010 and features a largeformat LCD display.

We always got the question How to adjust the doctor blades for rotary pad printing automations perfectly?. The blade angle on dryer doctors is typically set to 25° to 30° This angle is especially important on sheet shedding positions, where the recom mended angle is about 28° Blade angles are easily measured using modern digital gauges as shown in the figure below The most common device for setting doctor blade angles is the AngleSet™ gauge. Angle gauge Posted by Eugene Sanders on Jun 24th Useful, functional and accurate Posted by Dr David J Matheson on Nov 2nd 19 Still great!!.

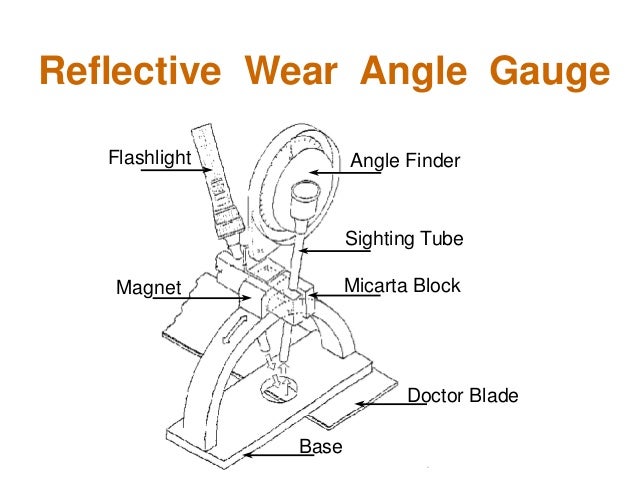

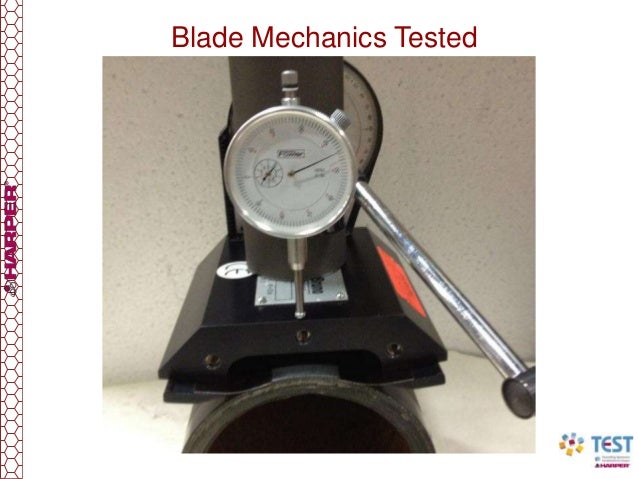

Blade angle is critical for a doctor, and is obtained by using a measuring gauge Set the angle at an accuracy of 1° The angles on the front and back sides must match at an accuracy of 05° Steam heated crosswalk runs underneath the doctor beam (view from tend side). Blade angle is critical for a doctor, and is obtained by using a measuring gauge Set the angle at an accuracy of 1° The angles on the front and back sides must match at an accuracy of 05° Steam heated crosswalk runs underneath the doctor beam (view from tend side). Products/Services for Doctor Blade Angle Indicators Dimensional Indicators and Comparators (2 companies) Dimensional indicators and comparators are instruments for comparative measurements where the linear movement of a precision spindle is amplified and displayed on a dial or digital display.

Doctor blade chamber alignment is critical for good doctor blade performance Take a few minutes to make sure that there is proper system alignment to prevent early and excessive doctor blade and anilox wear, ink leaks, waste and downtime Everyone knows that doctor blades are designed to remove excess ink from the surface of the anilox roll. A brief discussion on the contact angle and pressure of a doctor blade against an anilox roll. Mm MDC Setting Gauge Gor Doctor Blade Angle/Measuring Angle Gauge, US $ 450 5 / Unit, Swaziland, MDC, mmSource from Shantou Wingtai Packing Equipment Co, Ltd on Alibabacom.

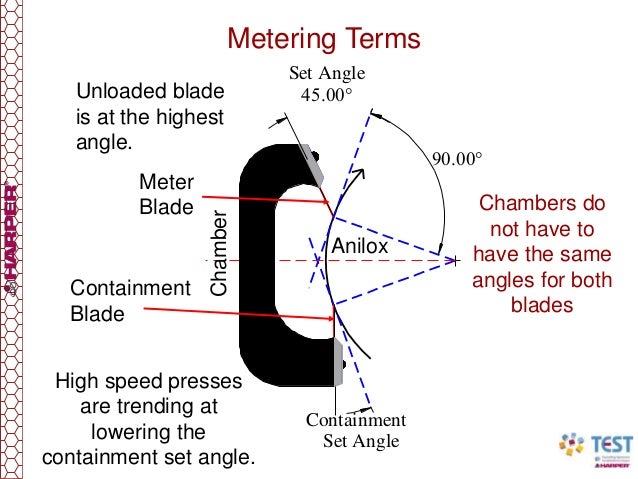

The contact angle should be 30° tangent to the anilox roll circumference In reverse angle and chamber blade applications, the doctor blade angle should be between 28° and 32° If the blade angle drops below 28°, a larger part of the blade’s edge will come into contact with the roll. Our doctor blade angle gauge tool allows experienced operators to achieve the optimal 60º blade angle setting for print excellence At this specific bladetocylinder engagement angle, issues like streaks, haze, fog, and dot fillin risks are greatly reduced No More Guess Work for Accurate Blade Settings Standard Features Your experts for. Products/Services for Doctor Blade Angle Indicators Dimensional Indicators and Comparators (2 companies) Dimensional indicators and comparators are instruments for comparative measurements where the linear movement of a precision spindle is amplified and displayed on a dial or digital display.

Wixey Digital Readout Products Planer Readout, Angle Gauges, Saw Fence Digital Readout, Digital Calipers with Fractions, Remote Planer Readout, Remote Router Readout. China mm Mdc Angle Gauge for Printing Doctor Blade, Find details about China Mdc Angle Gauge, Angle Gauge from mm Mdc Angle Gauge for Printing Doctor Blade Shantou Jielian Tech Co, Ltd. A precise adjustment doctor blade angle is crucial for an optimal contact zone The correct installation of the doctor blade into the doctor blade holder For best results, the blade holder and backup blade (if used), must be cleaned carefully and be in good condition The Doctor Blade must be mounted absolutely straight, without waves To prevent.

A method and system of measuring deflected doctor blade angle and loading force of an arrangement including a doctor apparatus operating in connection with a rotating cylinder, the apparatus having a doctor blade and a support member which pivots about at least one pivot point in response to an externally applied force for applying the doctor blade to a contact point on the cylinder. That’s why our doctor blades, blade holders and doctor systems have built a worldwide reputation for performance, durability and value Blade Holders All of Essco's blade holders are manufactured using 316L stainless steel The heavy duty construction of our holders provides the rugged durability and performance Essco is known for. IT AND HOMECOM ร้านไอทีแอนด์โฮม ดอทคอม โดยบริษัท อินเตอร์ไซต์ (ประเทศไทย) จำกัด 599/30 ถรัชดาภิเษก แขวงจตุจักร เขตจตุจักร กรุงเทพฯ Tel Fax Mobile ,086.

116 of 496 results for "blade angle finder" Best Seller in Angle Gauges Wixey Digital Angle Gauge Type 2 with Magnetic Base and Backlight 47 out of 5 stars 3,093 $2699 $ 26 99 $3499 $3499 Get it as soon as Wed, Oct 21 FREE Shipping by Amazon. Features and Benefits CPM 10V (A01) replaceable doubleended blades with an overall longer life than carbide Option to Add to Cart Stuart Batty 1/2" Skew Chisel. Common problems caused by lower quality or incorrect type of doctor blades include scoring of the anilox roller and UV ink spitting Using a fitforpurpose doctor blade will prevent issues, and it does not pay off to save on your metering equipment By Neel Madsen Cutting corners is never advisable in flexo printing a process that relies heavily on getting each element right in order for.

This new, highly wearresistant coating avoids corrections of the blade angle and blade pressure during the printing process, resulting in significantly higher durability of the doctor blade and print cylinder Product description Advantages Stateoftheart coating technology;. Doctor and roll cleaning blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since doctor and roll cleaning blades are used in a variety of industries including paper, tissue, carbon fiber, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each blade angle is set appropriately for the job. The angle gauge is produced in a size that the operator can keep it in their pocket and is handy to use when changing doctor blades The PrimeBlade Angle Gauge comes in two sizes One from circumference 300mm to 785mm and the other from circumference 785mm to > 6280mm It is delivered in a plastic pouch for protection.

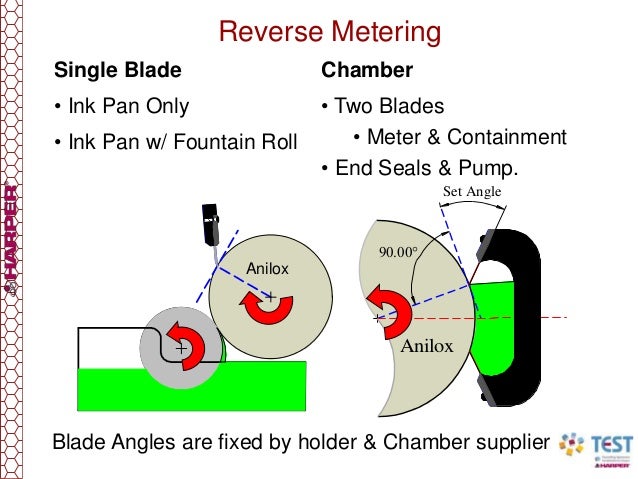

Usually the target is about a 30° angle For an enclosed doctor blade chamber this is already set at a predetermined angle For a reverseangle doctor blade a 3035° range is recommended Ultimately the operator should set the blade angle to ensure metering is optimized for the given metering system, anilox cylinder and ink type. This disclosure relates to a novel method of and means for automatically and repetitiously increasing and decreasing doctor blade/cylinder contact pressure and doctor blade/cylinder angle to lessen or prevent ''''coverage'''', ie, the presence of ink haze in the nonimage area of a print. Cut structural shapes such as Ibeams and angle iron as well as bundles of structural shapes and tubing with less tooth breakage than other blades The teeth are reinforced, forwardangled, and widely spaced to leave room for chips to collect.

Angle gauge Posted by Eugene Sanders on Jun 24th Useful, functional and accurate Posted by Dr David J Matheson on Nov 2nd 19 Still great!!. The AngleSet gauge provides an accurate reading of the blade angle to ± 010 and features a largeformat LCD display This tool's compact design allows for flexibility in application and is suitable for most doctor applications including creping, coating, drum flaking, and converting To determine blade angle, the AngleSet gauge is placed on the roll surface with the foot's center line at the point of blade contact. Doctor Blade Steel Our strip steel for doctor blades uses high grade steel and is manufactured with precision, making it a key component for ensuring reliable processes in the printing industry Manufacturers of doctor blades used in gravure or flexographic printing for example, appreciate the consistent quality of our strip steel for doctor.

Kadant Solutions, a division of Kadant Inc, launched its new AngleSet angle gauge tool for doctor blade and scraper installations The new AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance and longer blade life In addition, using the correct blade angle can extend the life of the roll. Blade attacked by (1) Electrostatic discharge, (2) Electrolysis, (3) Heat Insulate doctor from machine frame or use nonmetallic blade Blade material too soft Excessive pressure Blade angle too flat Use harder blade Reduce pressure Move bearings or brackets to increase angle Check for correct angle with gauge Blade overhangs roll Not. We always got the question How to adjust the doctor blades for rotary pad printing automations perfectly?.

Doctor Blade Angle Gauge Our blade angle gauge allows experienced operators to achieve the optimal 60 degree blade angle setting for print excellence At this bladetocylinder contact engagement angle, issues like streaks, haze, fog and dot fillin risks are greatly reduced. Blade attacked by (1) Electrostatic discharge, (2) Electrolysis, (3) Heat Insulate doctor from machine frame or use nonmetallic blade Blade material too soft Excessive pressure Blade angle too flat Use harder blade Reduce pressure Move bearings or brackets to increase angle Check for correct angle with gauge Blade overhangs roll Not. The blade angle on dryer doctors is typically set to 25° to 30° This angle is especially important on sheet shedding positions, where the recom mended angle is about 28° Blade angles are easily measured using modern digital gauges as shown in the figure below The most common device for setting doctor blade angles is the AngleSet™ gauge.

Reduces hazing and streaking;. Suitable for the standard octagonal doctor blades boxes size (for a correct use, the doctor blades must be tied together) BONANGLE Electronic angle measurer for an accurate positioning and alignment of the doctoring systems BONPULL Easy and efficient stainless steel tool, designed to extract blades from the blade holders. An angle that’s too high can give doctor blade vibration problems It is recommendable to use a contact angle between 5565 degrees A correctly set doctor blade angle normally allows as well a lower doctor blade pressure The Swedev “Doctor Blade Angle Gauge” is the tool that helps you control contact angle setting.

Doctor blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since paper, tissue, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each. Doctor Blade File — Rectangular cross section Parallel width and thickness Coarse cut for filing doctor blades used in the cloth printing industry 14" long DoubleEnded File — Triangular cross section Each end tapers to a point Single cut Cutting edge extends from both ends Often supplied with handles 6" – 10" long. Blade angle and anilox contact point are essential in controlling ink spitting A longlife doctor blade results in blade and end seal costs of approximately $360 per setup, while a standard blade package is more economical at roughly $150.

Wixey Digital Readout Products Planer Readout, Angle Gauges, Saw Fence Digital Readout, Digital Calipers with Fractions, Remote Planer Readout, Remote Router Readout. Doctor blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since paper, tissue, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each. Angle Gauge PrimeBlade are now proud to offer a tool that helps gravure printers to better be able to know the set doctor blade angle Contact WINDMÖLLER & HÖLSCHER AUSTRIA CEE GMBH & CO KG KarlPopperStrasse 8, Top 303 Austria 1100 Wien Tel 49 5481 140 Mail office_austriacee@wuhgroupcom.

The AngleSet gauge is used to set the proper angle for doctor, roll cleaning, and scraper blades for improved performance and extended blade life Using the correct blade angle can optimize the life of the roll The AngleSet gauge provides an accurate reading of the blade angle to / 010 and features a largeformat LCD display. The doctor blade angle will be measured by the tangent of the cylinder Read the blade angle on the angle scale and if necessary set the doctor blade once again Empirical value The contact zone angle of doctor blade, normally should be situated between 55° and 65° The machine has to be switched off, if you work with the setting gauge for. Description Applications Setting and maintaining the proper doctor blade angle is critical to maximize doctoring performance The AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance Applications include creping, drum.

Starrett Micrometers, Gages, Machinist Tools, Force Measurement, Precision Granite, Video Measurement, Optical Comparators, Band Saw, Jobsite Tools. Usually the target is about a 30° angle For an enclosed doctor blade chamber this is already set at a predetermined angle For a reverseangle doctor blade a 3035° range is recommended Ultimately the operator should set the blade angle to ensure metering is optimized for the given metering system, anilox cylinder and ink type. Coldwater offers an extensive line of high performance doctor blades from metals and phenolics to epoxy glass and carbon fibers All of our blade and tubing products are cobranded with our partners at Lantier We provide doctor blades, creping blades, coater and sealing blades, and tubing as well as Lantier doctoring equipment.

Mm MDC Setting Gauge Gor Doctor Blade Angle/Measuring Angle Gauge, US $ 450 5 / Unit, Swaziland, MDC, mmSource from Shantou Wingtai Packing Equipment Co, Ltd on Alibabacom. Until the late 1950s, all doctor blades were of the metal type In the late 1950s a phenol formaldehyde resin called Bakelite was taken into use as a doctor blade material It took many years for this material to become accepted for doctor blades since its cost in those early days was relatively high compared to metal. Reflective Wear Angle Gauge Flashlight Angle Finder Sighting Tube Micarta Block Doctor Blade Base Magnet 23 Typical Dry Creping Geometry 12 24 26 kN/m (15 pli) Blade Wear Angle Loading Pressure O 0 15 52 68 12 30 12 19 mm 065 125 mm Blade Grind Angle Creping Pocket Angle Sheet TakeOff Angle SheetToBlade Angle Blade.

Installing your TruPoint Orange doctor blade incorrectly will result in disaster Well, not really But it will create headaches for the press operator and waste valuable resources It will also prevent you from getting the maximum value from your doctor blade investment The TruPoint Orange doctor blade is a lifesaver in many pressrooms when it. Gravure industry recommends a doctor blade contact angle of approximately 55 to 65 degrees Flat angles create a greater contact area, thereby increasing hazing and dragouts Angles too steep produce chattering A precise adjustment doctor blade angle is crucial for an optimal contact zone. Here you have a short tutorial with useful hints.

PrimeBlade Sweden AB is a global manufacturer and supplier of Doctor Blades for flexo, gravure, offset printers, and coating applications Together with our Swedish raw material supplier and end users the doctor blade was produced to improve production quality, blade life, and to increase machine speeds Angle Gauge;. Kadant Solutions, a division of Kadant Inc, launched its new AngleSet angle gauge tool for doctor blade and scraper installations The new AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance and longer blade life In addition, using the correct blade angle can extend the life of the roll. A brief discussion on the contact angle and pressure of a doctor blade against an anilox roll.

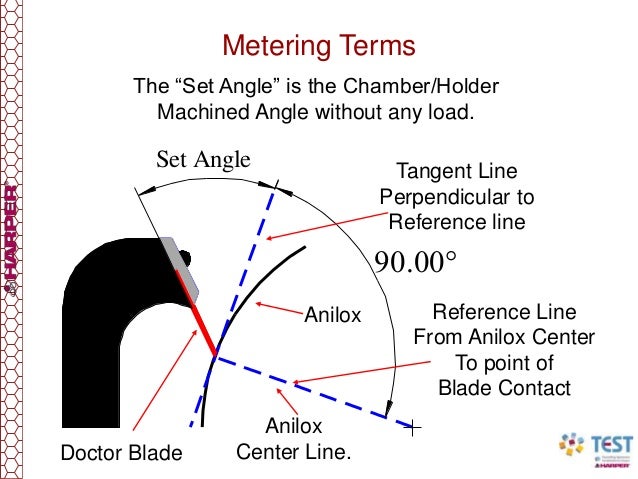

The doctor blade angle will be measured by the tangent of the cylinder Read the blade angle on the angle scale and if necessary set the doctor blade once again Empirical value The contact zone angle of doctor blade, normally should be situated between 55° and 65° The machine has to be switched off, if you work with the setting gauge for. Coldwater offers an extensive line of high performance doctor blades from metals and phenolics to epoxy glass and carbon fibers All of our blade and tubing products are cobranded with our partners at Lantier We provide doctor blades, creping blades, coater and sealing blades, and tubing as well as Lantier doctoring equipment. Features and Benefits CPM 10V (A01) replaceable doubleended blades with an overall longer life than carbide Option to Add to Cart Stuart Batty 1/2" Skew Chisel.
